Challenger II Biplane

Name: Challenger II Biplane
SKU: 1008
Price: 40.00 USD
Availability: InStock

$40.00 – $595.00

Designed By Miles Reed & Loren Prysi

Special thanks to Sean D. Tucker, Tom Dypert, and Brain Norris for their help.

We have agreed with the designers to produce a short kit.

Other info on the plane can be found HERE and HERE

Description
Reviews (0)

Aircraft Specifications:

85.75″ Top Wing

80.75″ Bottom Wing

85.25″ Fuse Length

4.4 in³ Engine and up

Wing Area – 2475 In²

Weight – 27 lbs.

Information:

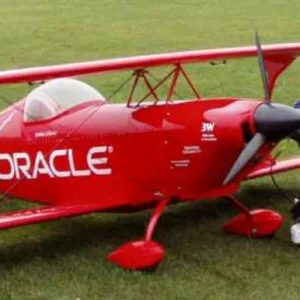

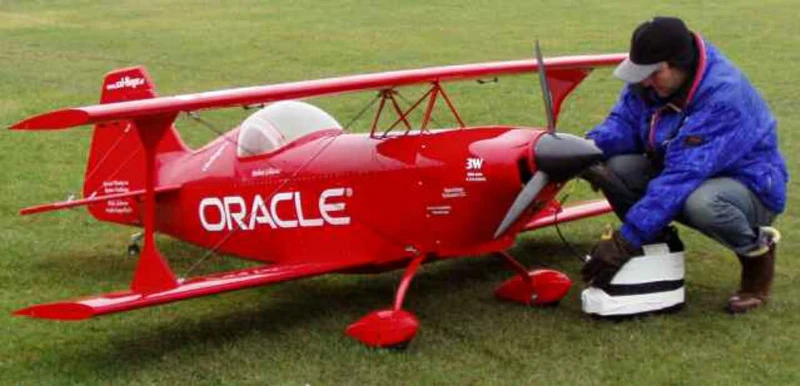

Sean Tucker’s 37% Challenger II Biplane.

2 Versions of the short kit are available.

Rounded ‘Pitts-like’ elevators as on the 1-800-COLLECT Black Challenger
‘Ultimate-like’ elevators as on the red ‘ORACLE’ Challenger

Plans are sold separately from kit.

Plans have all info for bending landing gear and cabanes for making your own. Cowl shown on plans is built up. Any 33% to 38% Pitts or Christian Eagle Canopy should fit.

	Parts List
1	Set of 18 Formers and Firewall
2	Fuse Sides
?	Misc Fuse Parts
30	Top Wing Ribs
29	Bottom Wing Ribs
7	Top Wing Cabane mount parts
6	Bottom Wing mount parts
6	Fin & Rudder Parts
2	Elevators
1	Tail Wheel Mount
1	Landing gear mount
2	I-Struts & mounts
4	Built Up Cowl Formers

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Oracle Challenger Plans (6 sheets) quantity	Oracle Challenger Plans (6 sheets)	$40.00
ORACLE Ultimate Elevator Version (Plans Not Included) quantity	ORACLE Ultimate Elevator Version (Plans Not Included)	$595.00
ORACLE '1-800-collect' Rounded Elevator Version (Plans not included) quantity	ORACLE '1-800-collect' Rounded Elevator Version (Plans not included)	$595.00
